AUSTROMAT 624i G2

Smart expert for perfect firing results.

DEKEMA
Firing furnace
IoT
Internet of Things
Quality management
Process data recording
DEKEMA database
Program streaming
DEKEMA Circle
Cloud Management
DEKEMA
AutoDry & AUTORITE

Content from a third-party provider

We use YouTube (USA based provider) to display videos. Your consent is required if you wish to view these videos. In the process, YouTube sets cookies and processes data.

You can find more information at Privacy policy.

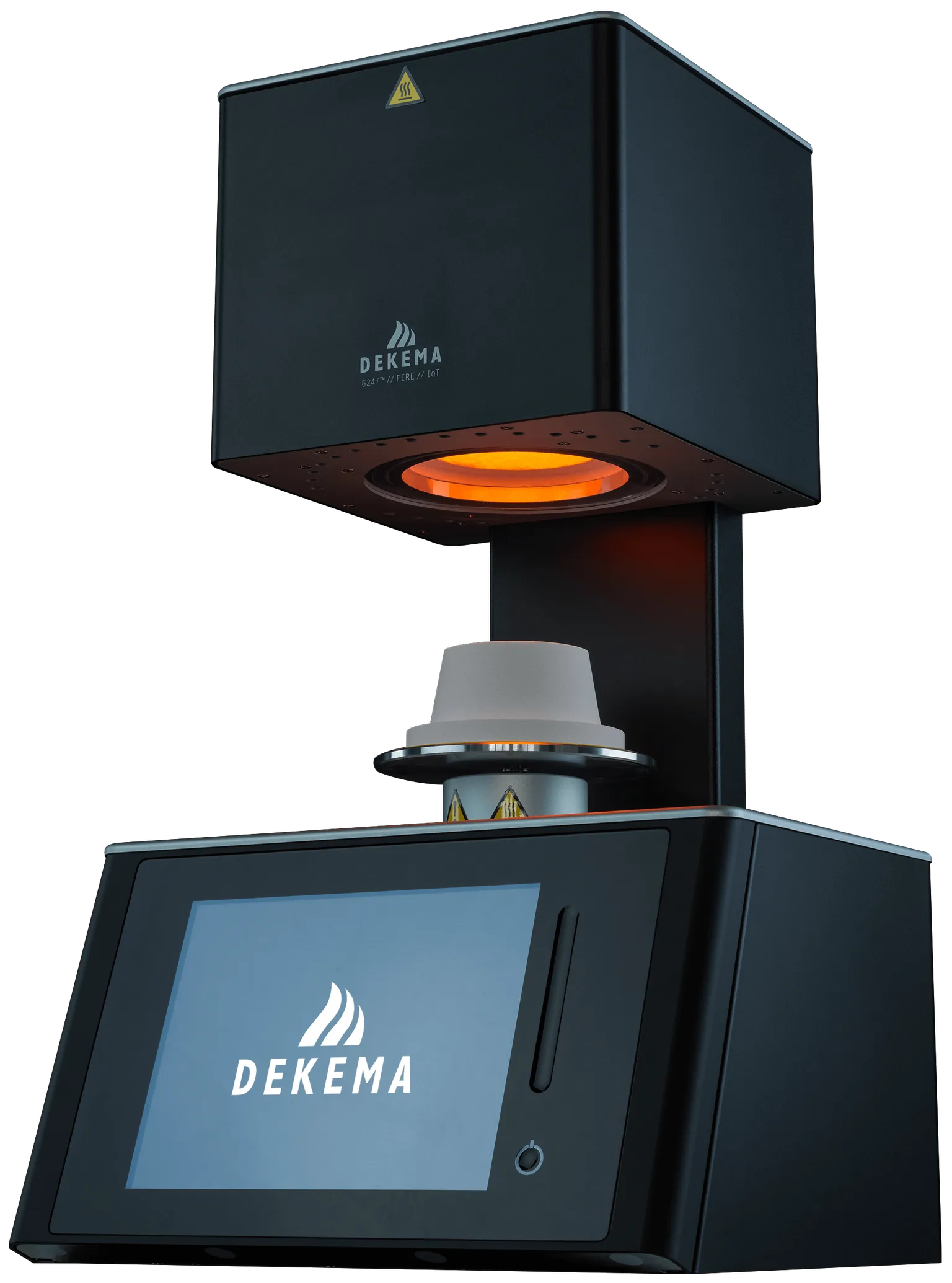

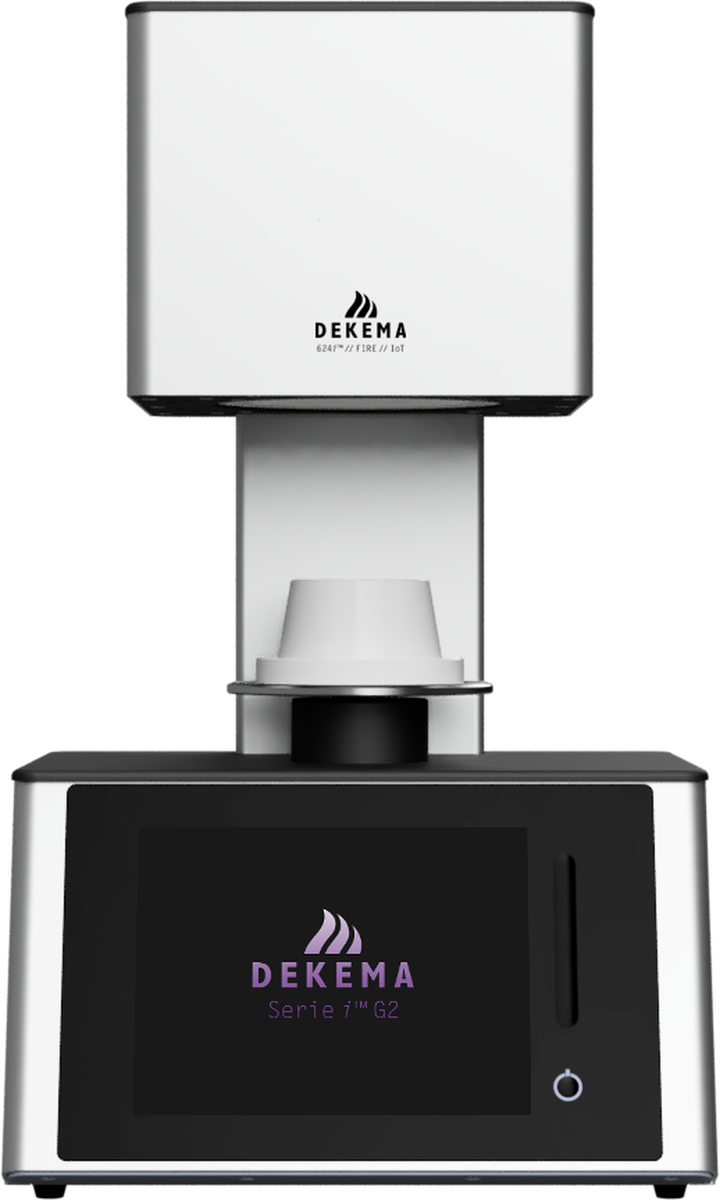

AUSTROMAT 624i G2

The top class of dental technology: The AUSTROMAT 624i G2 delivers perfect results thanks to intelligent automation of drying and cooling. With full connection to the DEKEMA Cloud and unlimited access to firing, pressing and sintering programs, you will experience innovation and precision at the highest level.

AUSTROMAT 624i

Perfect heat distribution thanks to closed insulation system
DEKEMA AutoDry & AUTORITE
10.4 inch color touchscreen display
DEKEMA Internet database furnace connection
Internet program streaming
Cloud management in the DEKEMA Circle
IoT (Internet of Things)
Quality management: Recording of process data
USB functionalities: Transfer of burning and pressing programs, photos, QM files and printouts; backup and update
Ethernet interface
OPC UA interface
Online: Backup and update

DEKEMA combustion chamber

In-house production
Unsurpassed premium quality thanks to decades of expertise
Uniquely harmonious energy distribution
Fiber insulation in uniquely pure quality and high-precision design

DEKEMA heating system

In-house production of the heating coil
Unsurpassed durability and longevity thanks to high-purity materials

DEKEMA AUSTROMAT 624i leicht seitliche Ansicht

- Catalog DEKEMA Fire & Press
- Product images

DEKEMA housing

High-quality aluminum housing
Corrosion-free
Elegant surface finish
Integrated convection cooling without separate fan

DEKEMA firing table

Fiber insulation with 80 mm diameter in uniquely pure quality
Perfect interaction with multifunctional DEKEMA firing tray
(can also be used with other common products)

DEKEMA thermocouple

Thermocouple made of high-purity platinum / platinum-rhodium
Unique and DEKEMA exclusive control accuracy of well below 0.5°C
Incomparable temperature behavior

Request now

DEKEMA lift system

Low-vibration lift movement
Durable and maintenance-free stainless steel mechanism
Individually selectable drying position

Request now

DEKEMA AutoDry & AUTORITE

The exclusive DEKEMA AutoDry function simulates the temperature measurement on the object and automatically regulates the distance between the firing object and the firing chamber via the vibration-free lift. The result: precise, time-optimized drying, heating and cooling phases.

DEKEMA AUTORITE controls temperature-precise drying, heating, and cooling rates via the lift position. This allows continuous operation with no cooling of the firing chamber and extremely fast temperature changes up to well over 1,000°C/min, e.g. from room temperature to 900°C/min in less than 30 seconds. The highest heating and cooling rates can be achieved efficiently and precisely.

Request now

DEKEMA user interface

Language-based menu navigation (17 languages)
Self-explanatory touch input
Unlimited program diversity from the DEKEMA Cloud.

Request now

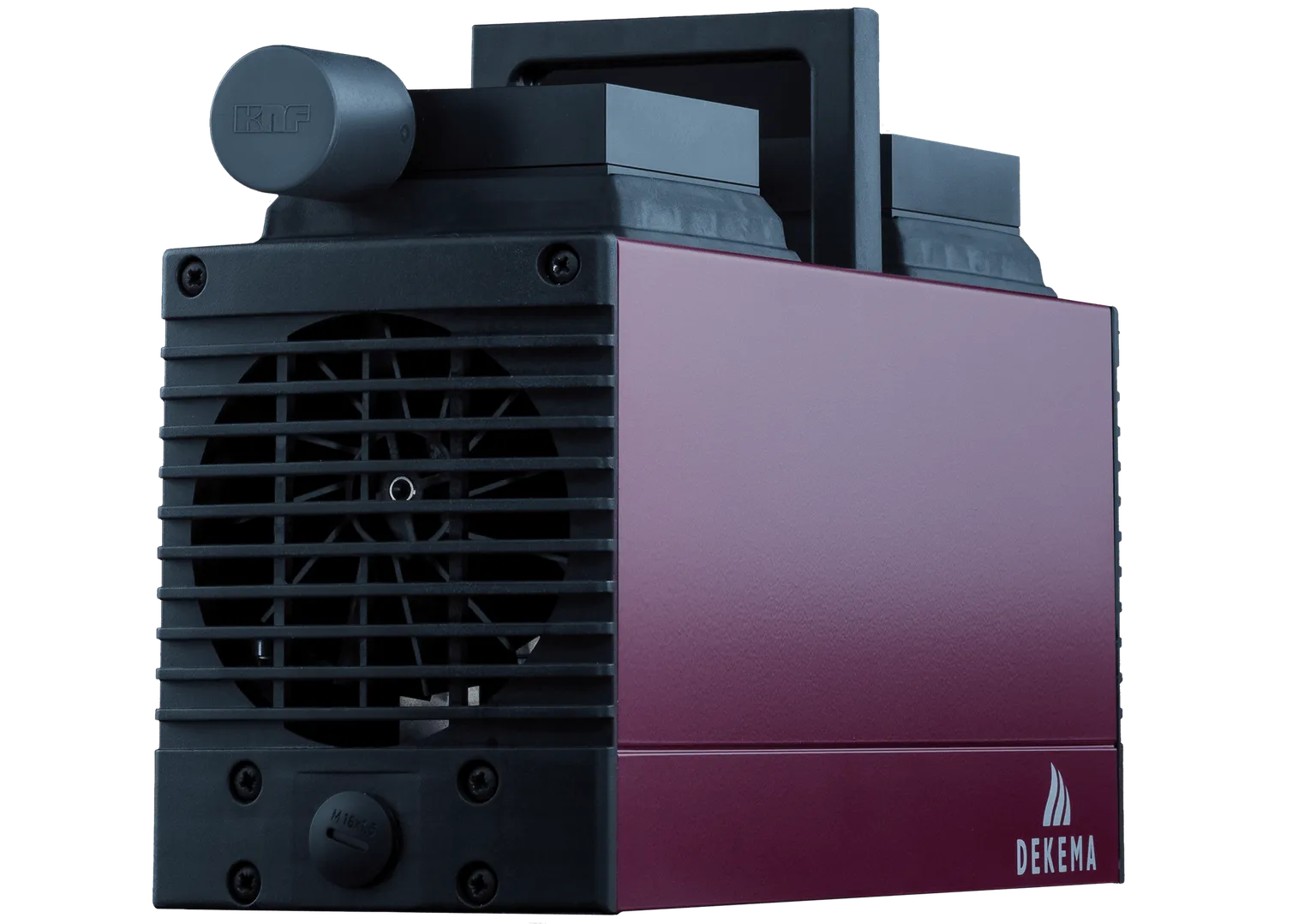

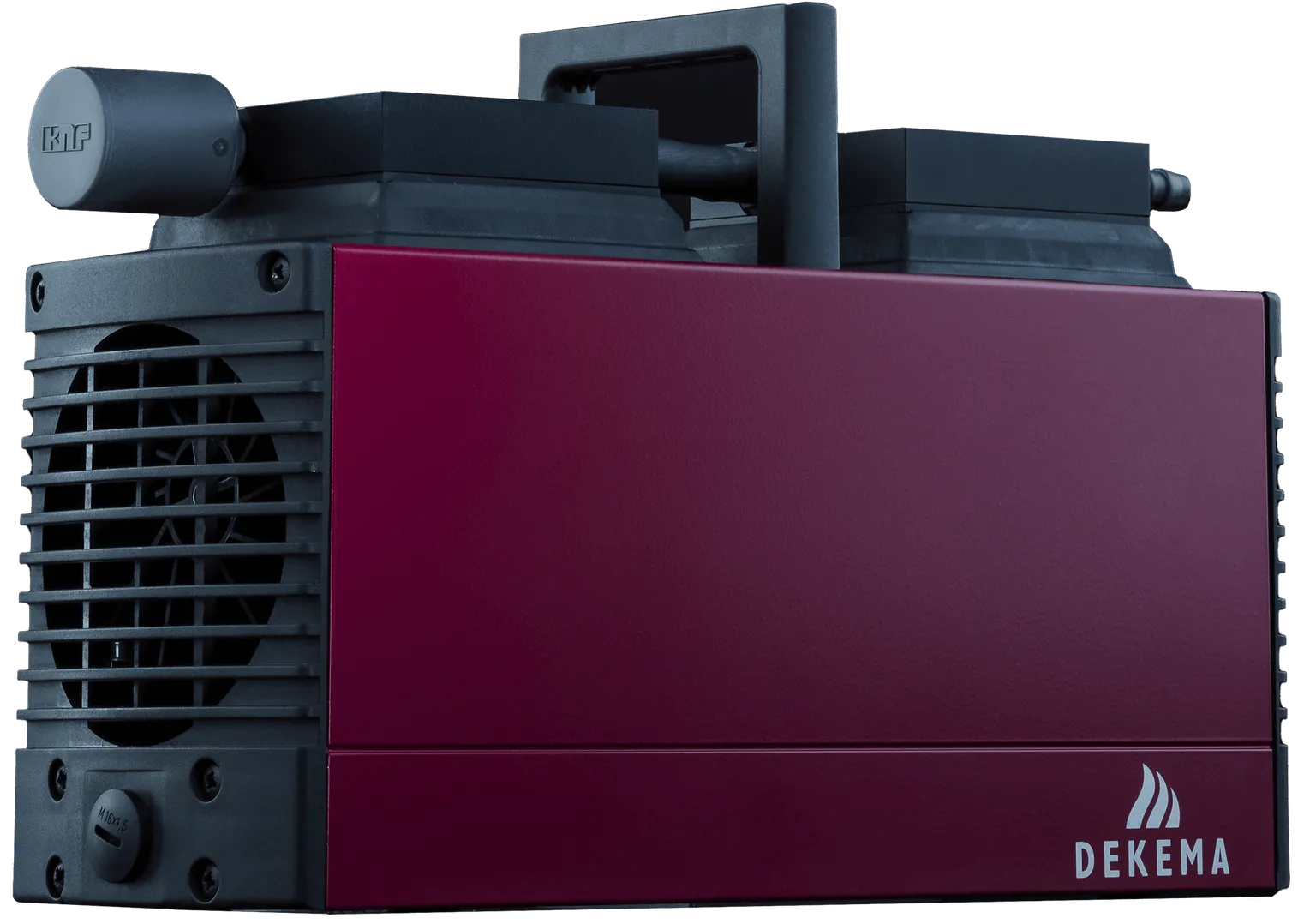

DEKEMA vacuum pump.

In-house development with exclusive DEKEMA features.

Self-cooling pump heads made of aluminum
Coating with Trenn Coat™ reduces deposits
Flow-optimized gas routing
High mileage with low maintenance requirements
Self-cleaning thanks to perfect air flow
Low-noise operation due to silencer

Accessories & consumables

AUSTROMAT 624i G2

CALIBRITE Fire Set
Item no. 101817-01
Silver sample set for precise temperature setting of kilns and press furnaces with single-piston press system

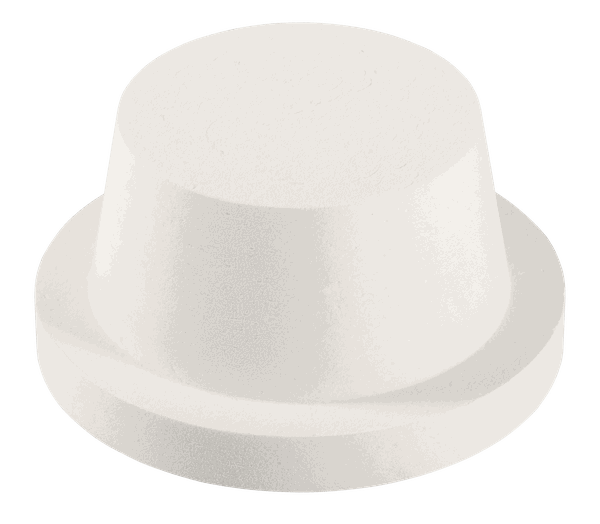

Firing table, fiber
Item no. 101733
Firing table for use in kilns with fiber insulation

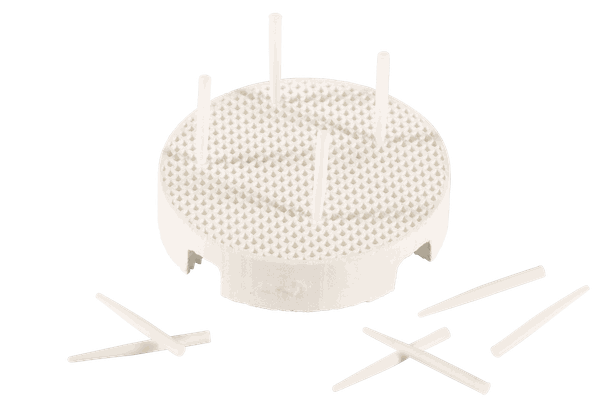

Fuel carrier set
Item no. 106490
Firing tray set consisting of temperature-optimized honeycomb tray and 10 ceramic pins for exact positioning of firing objects

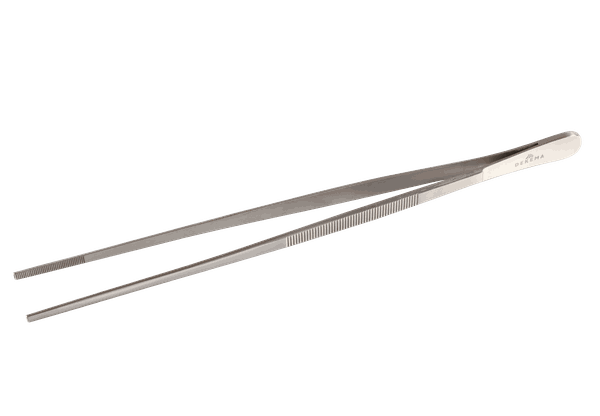

Tweezers with DEKEMA logo
Item no. 105236
Kiln tweezers for safe handling of firing objects
